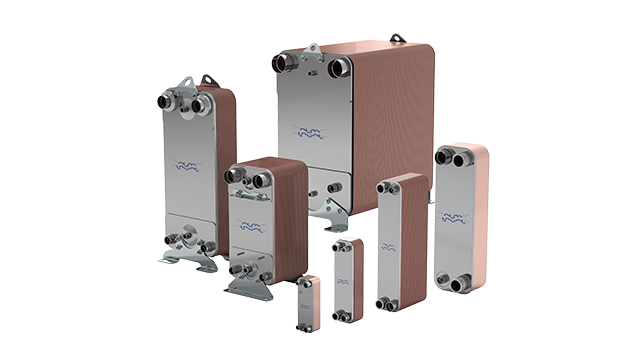

AC
Built with Alfa Laval’s flexible DynaStatic distribution system, which our experts optimize according to your specific application and choice of refrigerant, our AC line of heat exchangers offers top thermal performance in evaporation duties. Combined with the unique FlexFlow asymmetric channel plates, you get the maximum possible efficiency for your system.
More with AC
- DynaStatic and FlexFlow ensure optimal condensation and evaporation efficiency in any application and with any refrigerant
- As evaporators, AC units handle capacities ranging anywhere from 5 to 1000 kw
- A true dual-refrigerant circuit system, with three media possible for double compressors
- Thanks to high pressure resistance, an AC unit with distributor can also work as a condenser in reversible systems
- Available for design pressures ranging from 32 to 60 bar, with the same compact footprint and no need for bigger frames or bolts
The Alfa Laval AC65 – total efficiency for residential heat pump applications
Offering thermal efficiency, developmental efficiency, and process efficiency, the AC65 is a next-generation heat exchanger for the high-volume heat pump market. It offers unrivalled quality and exceptional performance with the lowest possible charge, making it the perfect fit for low-GWP refrigerants, including R290.
The Alfa Laval AC540 family–optimized for low-GWP refrigerants
The world of refrigerants is evolving rapidly, driven by environmental concerns, and by the challenge of achieving ever-higher efficiency from the new generation of low-GWP refrigerants, such as R32 and carbon dioxide. To address the many new challenges facing the HVAC industry, Alfa Laval developed the AC540 family of brazed heat exchangers, with designs that are optimized to work with the refrigerant of your choice.
The easy way to reduce your energy costs and increase energy efficiency
A refund is just the start of your savings potential with the new exchange programme. Alfa Laval’s innovative heat exchanger technology will significantly increase the energy efficiency of your processes. That means drastically lower power consumption and carbon emissions, along with a significant reduction in your long-term operating costs.
Key applications
Air conditioning and chillers
As the name suggests, the AC line is an optimal choice for air conditioning and refrigeration chiller applications.
Heat pumps
Alfa Laval brazed heat exchangers can be used as condensers, economizers, evaporators and more.
How it works
With the DynaStatic distribution system, AC model brazed plate heat exchangers are engineered to give the optimal fit for their intended application. The system is generally designed to provide countercurrent media flow but can also be configured for co-current flows.
View the animation to learn more.
Unique features to boost your performance
With more than 80 years of experience in heat transfer innovation, Alfa Laval knows what it takes to deliver high-performance solutions for any application. Our experts continuously develop new innovations that give our AC line of brazed plate heat exchangers more reliable and efficient performance.
DynaStatic
Distribusi refrigeran yang fleksibel
Metode produksi terobosan ini memungkinkan Anda sepenuhnya menyesuaikan penempatan, ukuran, dan jumlah saluran masuk dengan aplikasi tertentu, memastikan sistem distribusi refrigeran yang optimal untuk produk Anda. Menghasilkan efisiensi yang lebih tinggi dengan fleksibilitas penggunaan refrigeran ber-GWP rendah.
PressureSecure
Kekuatan untuk tugas menantang yang tak tertandingi
Desain pelat inovatif kami mendukung jangkauan aplikasi bersuhu dan bertekanan tinggi terluas. Unit dapat berjalan menggunakan pelat yang lebih tipis dan lebih sedikit, yang berarti penggunaan bahan baku lebih sedikit, konsumsi energi lebih rendah, biaya refrigeran berkurang, dan siklus hidup peralatan lebih lama.
FlexFlow™
Kinerja termal yang unggul
Desain pelat asimetris Alfa Laval yang dipatenkan adalah salah satu dari banyak inovasi unik yang memberikan peningkatan efisiensi termal berkat penurunan tekanan yang dioptimalkan dan peningkatan turbulensi. Tidak hanya mengurangi konsumsi energi, tetapi juga mengurangi volume refrigeran dan bahan baku.
IceSafe
Pembekuan yang terkendali dan tidak merusak
Untuk aplikasi yang memerlukannya, kami dapat menyediakan penukar panas pelat yang dirancang untuk memungkinkan pembentukan kristal es dalam kondisi pengoperasian tertentu, tetapi tidak ditempatkan pada area sensitif. Hal ini memastikan kinerja yang andal dan masa pakai produk yang lama.
REFuture
Investasi andal untuk refrigeran masa depan
Sebagai penggerak inovatif dalam pengembangan solusi untuk refrigeran alami, Alfa Laval sangat berpengalaman dalam menghasilkan produk yang memungkinkan penggunaan refrigeran generasi baru dan rendah GWP untuk membantu Anda mencapai tujuan keberlanjutan dan segala peraturan legislatif.
Finding your Alfa Laval AC heat exchanger
The Alfa Laval AC line of brazed plate heat exchangers are available in four models, corresponding to different maximum design pressures and optimized for use with different refrigerants:
- AC units – 32 bar
- ACH units – 45 bar
- ACK units – 49 bar
- ACP units – 60 bar
To make sure you get the best model for your duty, Alfa Laval offers guidance and useful tools. Begin by exploring our product guide, an interactive resource designed to help you quickly find your ideal solution.
Contact us
Do you have questions about our portfolio of brazed and fusion bonded plate heat exchangers? We can work with you to find the optimal model to fit your specific needs.
